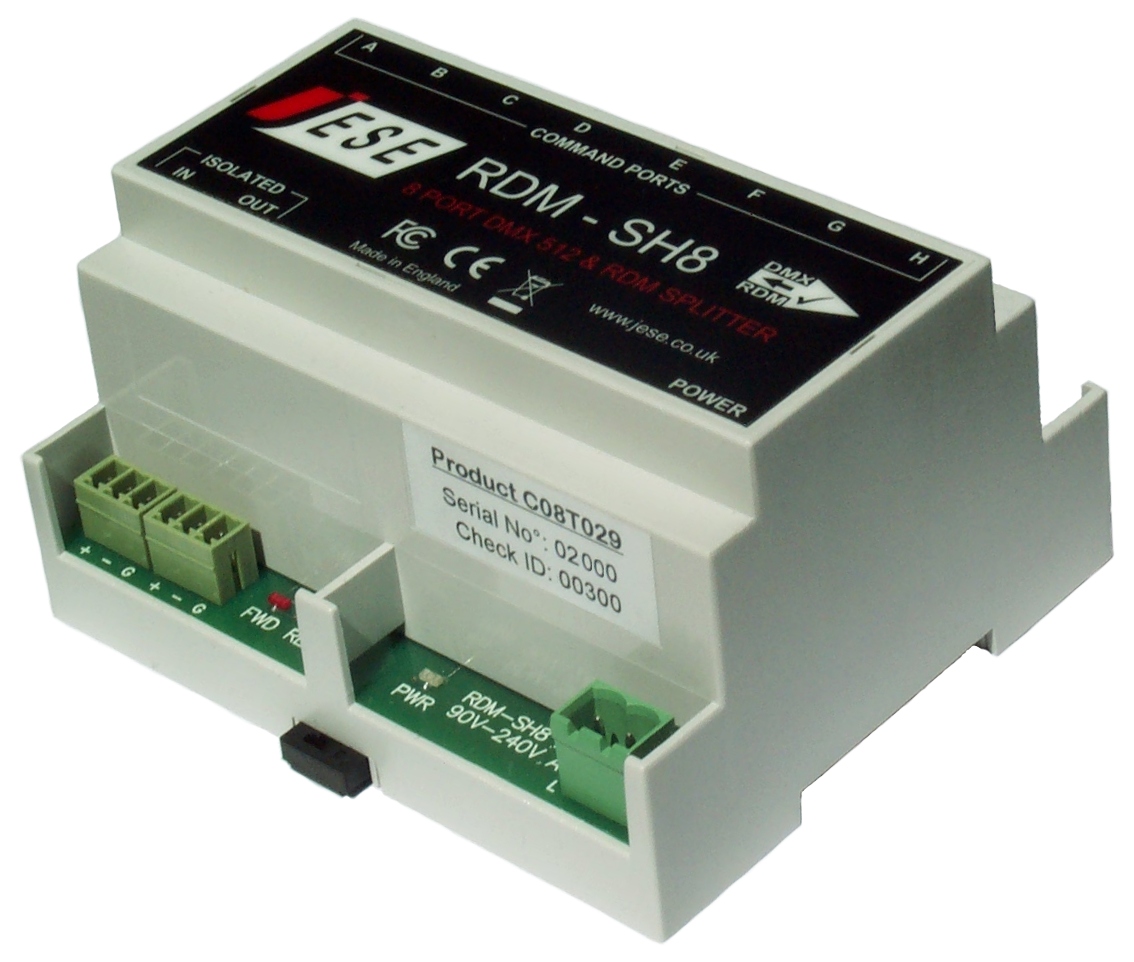

DMX & RDM Splitter

8 Output DIN Rail Splitter with RDM Personality and configurable port.

DC Low Voltage(LV) and AC Auto Ranging(AR) Options

- Features -

8 Outputs
The splitter has 8 individually driven Output or Command Ports. The Output Ports have a common ground and for the LV variant, are tied to the power ground. Ports may be individually disabled using RDM.
Fail-Safe Input
The Input or Responder Port is electrically isolated > 1KV from the supply and Output Ports and has a through connection. The splitter is equipped with a Fail-Safe receiver that maintains outputs in a steady state on loss of input signal.
RDM Discoverable Device
The splitter is a discoverable device with 8 sub-devices to represent each output port. Each sub-device has personalities to disable or enable port operation, together with a label to help with system maintenance. DEVICE_POWER_CYCLES and DEVICE_HOURS are also supported by RDM.

Suitable for DMX512 & RDM
Signal Distribution

Click on image to view.

A complete set of pluggable rising-clamp connectors is included with each unit.

- Tech Spec -

Mounting
DIN Rail4U (EN50022)
Power Supply
7W (Nominal)
Indication
Forward, Reverse & Status
Dimensions
94mm x 102mm x 58mm
Weight
148g(AR), 148g(LV)
Environment
0°C to 50°C, 5% to 90% RH
Standards
ANSI E1.11 - 2008(R2013) DMX512A
ANSI E1.20-2010 RDM over DMX512 networks
Materials
ROSH, WEEE
Compliance
CE, FCC

- Choice of Power Input -

The splitter is available with two options to best suit your application:
