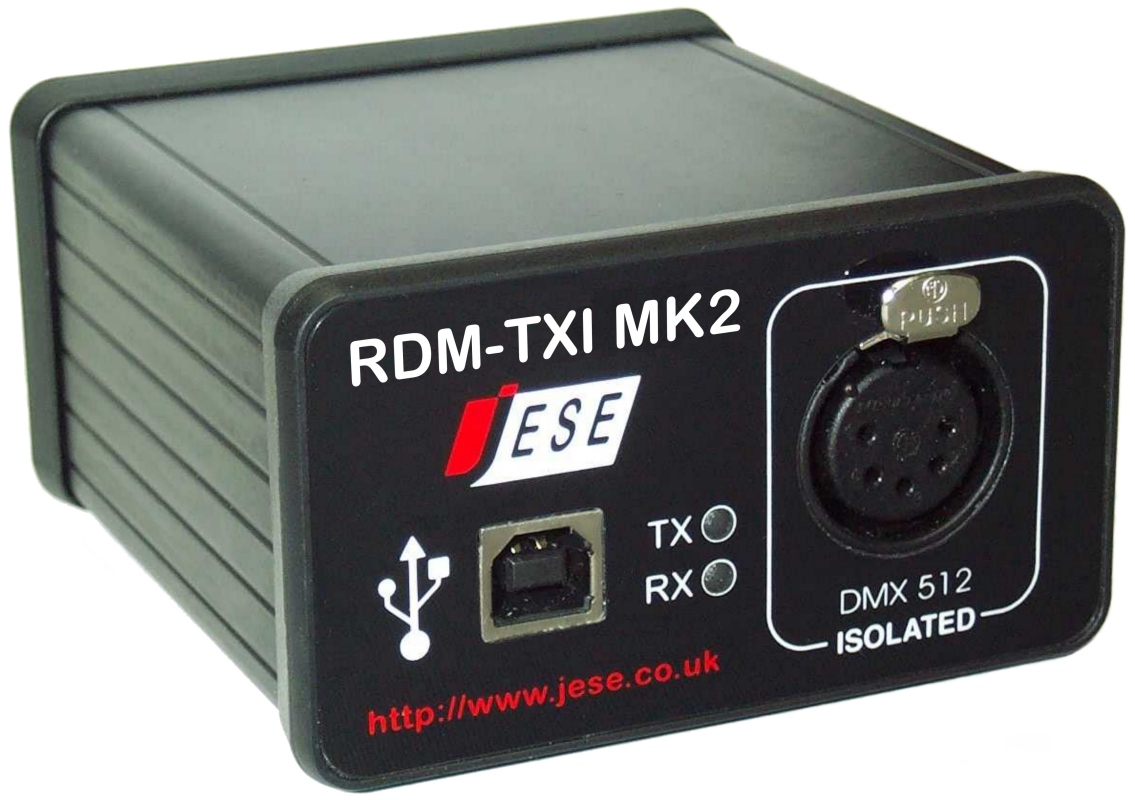

RDM-TXI MK2

TXI User Guide

RDM-TXI MK2

GetSet MV Guide

RDM-TXI MK2

The ultimate DMX interface for RDM enabled controller applications.

- Full Featured -

RDM Protocol Aware
On Board Discovery
RDM Idle State Bias
RDM Error Management
DMX Output
120 Ohm Termination
DMX Socket 1kV Isolated
Configurable Parameters
1 to 40 Frames/second
Frame Break Time (BRK)
Mark After Break (MAB)
Input Frame Buffering
TX & RX Indicators
Audio Error Indicator
Two Command Sets
Robust Firmware Upgrade
Published Interface Spec

Suitable for DMX512 and RDM

Click on image to view

Ideal for RDM Configuration
&
Responder Testing

RDM Controller Software

RDM Controller Windows Application.
Graphical interface for Intuitive control.
Utilises protocol engine facilities
on board the RDM-TXI.
Includes 1 year of free upgrades
Available with as Package or Separately

- Package Option -

The RDM-TXI is available as a Package with the application GetSet MV, or independently for use with alternative software applications such as OLA or custom developments. Licenses to use the controller with GetSet MV can also be purchased separately.

With suitable PC software, the solution makes the world of RDM accessible to all, enabling remote configuration and interrogation of RDM compliant equipment. A USB cable to connect to PC is included.

DMX512

- Transmitter -

The TRI will generate DMX Universe frames asynchronously at rates configurable between 1 to 40 frames a second. Options are available to update the entire frame at once, a single slot within the frame or to insert a single frame into the transmission sequence.

RDM ANSI E1.20

- Controller -

The RDM-TXI comes into its own when a simple to manage interface with the world of RDM is required. The RDM protocol handling and checking is taken care of in real time, leaving the host application free to make simple requests and issue instructions to all compliant devices.
The TXI manages interleave of DMX and RDM packets, even when the onboard responder discovery routine is active. When instructed the discovery routine discovers all compliant responders, compiling a register of discovered responders for a host application to query.
